50HZ Home Textile Fabric Stenter Machine Textile Finishing Equipment 210KW

Product Categories
Xinwen Machinery Manufacturing (Wuxi) Co.,Ltd.
Contact Now

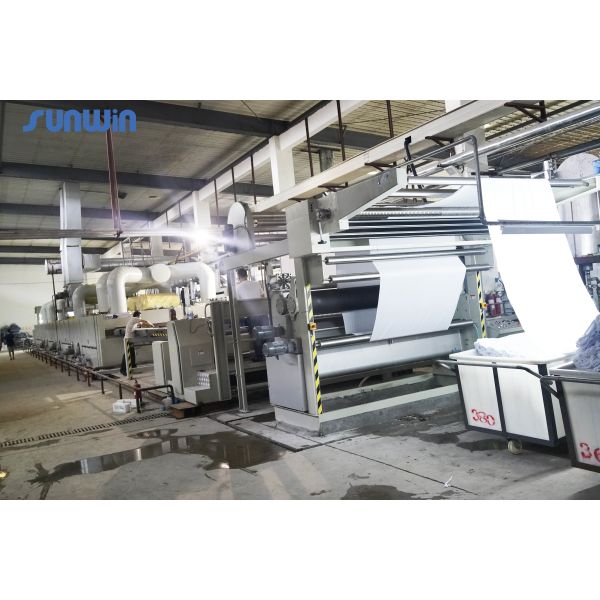

50HZ Home Textile Fabric Stenter Machine Textile Finishing Equipment 210KW

  • 1
  • 2

Brand Name : SUNWIN

Model Number : KTH-3200-10

Certification : CE

Place of Origin : CHINA

MOQ : 1 SET

Price : USD5000-330000

Payment Terms : L/C, T/T

Supply Ability : 7-8 Sets/ Month

Delivery Time : 90 Days

Packaging Details : Standard Export Packing

Condition : NEW

Automatic grade : Fully automatic

Automation : PLC+ Inverter

Touch Screen Controller : 15''

Voltage : 380V/50HZ

Power : 210KW

Warranty : 1 Year

Service : Overseas service available

Color : White

Speed : 5-100m/min

Working width : 2800mm

Heating system : Gas/ Thermal Oil/ Steam

Weight : 60 T

Contact Now

After fabric weaving type loom stenter machine for home textile presetting process

Features:

- All the functions controlled via central production control panel

- All the machine setting carried out as automaticlly

- Each heat setting chamber length 3000mm

- Module design, easy for machine design

- Insulation panel thickness 150mm

- Individual configuration for knit and woven fabric

- Thermal oil, steam or gas can be used for heating system

- Individual temperature control for each chamber

- Each chamber is adjusted via PLC

Specification:

Model KTH-3200-10
Machine width 3200mm
Working width 3000mm
Chamber 10 chamber
Speed 5-100m/min
Heating system Thermal Oil/ Gas
Rail Horizontal type rail
Overfeed rate -30% ~ +80%
Cooling Air cooling
Fabric exit Plaiter + roll batching
Inner chamber Moisture control Option
Automatic weft straightener Option

50HZ Home Textile Fabric Stenter Machine Textile Finishing Equipment 210KW

Company Introduction:

Wuxi Xinwen Machinery Manufacturing Co., Ltd is a high tech enterprise, specialist in stenter machine design, manufacturing and sales. Since 2000, we start and insist on giving a professional textile machinery solution for our customer, upgrade the product quality and create values for our customer. With continuous efforts on technical innovations and quality improvement, our team and equipment are further developed.
